Introduction

Gold has held a special place in human history, economy, and culture for thousands of years. Revered for its beauty, scarcity, and unique physical properties, gold has been used as currency, a store of value, and a key element in jewelry and art. In the economic realm, gold serves as a hedge against inflation and economic uncertainty. Central banks around the world hold significant gold reserves, underscoring its importance in the global financial system. For instance, during the 2008 – 2009 financial crisis, the price of gold surged as investors sought a safe – haven asset.
In the cultural context, gold symbolizes wealth, prosperity, and luxury in many societies. In India, gold is an integral part of religious festivals and weddings, with families investing heavily in gold jewelry. In Western cultures, gold – plated or solid – gold items are often given as gifts on special occasions.
Given the high value and widespread use of gold, accurately determining its purity is crucial. Whether you are a jeweler crafting a high – end piece, an investor buying gold bars, or a consumer purchasing a gold necklace, knowing the exact gold content ensures that you are getting what you pay for. This is where X – Ray Fluorescence (XRF) technology comes into play, revolutionizing the way we test the purity of gold.

What is XRF Technology?

Working Principle

X – Ray Fluorescence (XRF) is a non – destructive analytical technique used to determine the elemental composition of a sample. The basic principle of XRF is rooted in the interaction between X – rays and atoms.
When a sample is bombarded with high – energy X – rays (primary X – rays), the energy from these X – rays can eject inner – shell electrons from the atoms within the sample. This process is called ionization. As a result, the atom becomes unstable with a vacancy in its inner electron shell.
To regain stability, outer – shell electrons immediately transition to fill these inner – shell vacancies. During this transition, the electrons release energy in the form of X – rays, known as secondary X – rays or fluorescent X – rays. Each element has a unique electron configuration, which means that the energy of the fluorescent X – rays emitted is characteristic of the element. For example, gold atoms will emit fluorescent X – rays with specific energies that are distinct from those of silver or copper atoms. By precisely measuring the energy and intensity of these fluorescent X – rays, we can identify the elements present in the sample and determine their relative abundances.

XRF Instrument Components

  1. X – Ray Source: This is the component that generates the primary X – rays used to irradiate the sample. Most commonly, X – ray tubes are employed. An X – ray tube consists of a cathode, which emits electrons when heated, and an anode made of a specific material such as tungsten or rhodium. When a high – voltage potential is applied between the cathode and the anode, the electrons emitted from the cathode are accelerated towards the anode. Upon impact with the anode, the electrons transfer their energy, and a small fraction of this energy is converted into X – rays. The choice of anode material and the operating voltage of the X – ray tube determine the energy and intensity of the generated X – rays.
  2. Detector: The detector is responsible for capturing the fluorescent X – rays emitted by the sample. There are several types of detectors used in XRF instruments. Semiconductor detectors, such as silicon drift detectors (SDD), are widely used due to their high energy resolution. They can accurately measure the energy of the incoming X – rays, which is crucial for identifying the elements in the sample. Another type is the scintillation detector, which converts the X – rays into light photons. These photons are then detected and converted into electrical signals by a photomultiplier tube. Scintillation detectors are often used for detecting higher – energy X – rays.
  3. Spectrometer and Analysis System: The spectrometer is the part of the XRF instrument that analyzes the signals received from the detector. In energy – dispersive XRF (EDXRF), the spectrometer directly measures the energy of the fluorescent X – rays. It sorts the detected X – rays based on their energy levels, creating an energy – dispersive spectrum. Each peak in the spectrum corresponds to a specific element, and the height of the peak is related to the concentration of that element in the sample. Wavelength – dispersive XRF (WDXRF) uses a crystal to diffract the fluorescent X – rays. By measuring the angles at which the X – rays are diffracted, the wavelength of the X – rays can be determined, and from this, the elements in the sample can be identified. The analysis system, which includes software, processes the data from the spectrometer. It compares the measured X – ray energies or wavelengths with known values in a database to identify the elements present in the sample. It also calculates the concentrations of these elements, often by comparing the intensities of the fluorescent X – rays with those of known standards.
  4. Sample Holder: This is a simple but essential component. The sample holder securely holds the sample in place during the XRF analysis. It ensures that the sample is positioned correctly relative to the X – ray source and the detector. For solid samples, the holder may be a simple clamp or a custom – designed fixture. For powder or liquid samples, special holders are used to ensure even distribution of the sample and proper exposure to the X – rays. Some sample holders are designed to be vacuum – compatible, which is necessary when analyzing samples that are sensitive to air or when high – precision measurements are required.
  5. Collimators and Filters: Collimators are used to shape and direct the X – ray beam. They limit the size and divergence of the X – ray beam, ensuring that only the desired part of the sample is irradiated. Filters, on the other hand, are used to selectively absorb certain wavelengths of X – rays. This can help to reduce background noise, enhance the signal – to – noise ratio, and improve the accuracy of the analysis. For example, a filter may be used to remove unwanted scattered X – rays or to preferentially transmit X – rays of a specific energy range.

XRF Technology in Gold Testing

Gold Purity Determination

XRF technology is a game – changer when it comes to determining gold purity. When using XRF for gold purity testing, the process begins with placing the gold sample in the XRF instrument. The high – energy X – rays from the X – ray source irradiate the sample. As the X – rays interact with the atoms in the gold sample, they cause the ejection of inner – shell electrons, as described in the working principle.
The subsequent emission of fluorescent X – rays is then detected. Gold has a characteristic set of fluorescent X – ray energies. By precisely measuring these energies and comparing them with known standards in the instrument’s database, the XRF system can accurately identify the presence of gold. The intensity of the gold – specific fluorescent X – rays is directly related to the amount of gold in the sample.
For example, in a 24K gold sample, which is considered nearly pure gold (usually 99.9% or higher gold content), the XRF analysis will show a dominant peak corresponding to the fluorescent X – rays of gold, with very low intensities of peaks associated with other elements. In contrast, for an 18K gold sample, which has a gold content of about 75%, the XRF spectrum will show a less intense gold – related peak, along with more prominent peaks corresponding to the alloying elements, such as silver and copper, which are typically added to 18K gold to increase its hardness and alter its color.
The XRF instrument’s software uses complex algorithms to calculate the percentage of gold in the sample based on the measured intensities of the fluorescent X – rays. This allows for a highly accurate determination of gold purity, often with an accuracy of ±0.1% or better, depending on the quality and calibration of the XRF instrument.

Detection of Impurities and Alloys

One of the significant advantages of XRF technology in gold testing is its ability to detect impurities and alloying elements in gold samples. In addition to determining the gold content, XRF can identify and quantify other elements present in the sample.
Common impurity elements in gold include silver (Ag), copper (Cu), zinc (Zn), nickel (Ni), and iron (Fe). For instance, silver is often found in gold alloys. In small amounts, it can enhance the color and workability of the gold alloy. However, if the silver content is too high, it can make the gold alloy more prone to tarnishing. Copper is another common alloying element in gold. When added to gold, it increases the hardness of the alloy, making it more suitable for jewelry manufacturing, especially for pieces that need to hold their shape or for settings that require more durability. But copper can also cause the gold alloy to have a reddish – tint, depending on the proportion.
XRF can detect these impurities and alloying elements even at trace levels. By accurately measuring the fluorescent X – rays of these elements, the XRF instrument can determine their concentrations in the gold sample. For example, if a gold sample is suspected of being adulterated with a non – precious metal like tungsten (W) in an attempt to fraudulently increase its weight, XRF can quickly identify the presence of tungsten. Tungsten has a distinct set of fluorescent X – ray energies that are easily distinguishable from those of gold and other common alloying elements.
In the case of gold jewelry, XRF can analyze the composition of the solder used to join different parts. Solder in gold jewelry often contains a different proportion of gold and other elements compared to the main body of the jewelry. XRF can accurately measure these differences, ensuring that the quality of the jewelry meets the required standards. This is crucial for both the manufacturer, to maintain product quality, and for the consumer, to ensure they are getting a product of the expected value.

Advantages of XRF for Gold Testing

Non – destructive Testing

One of the most significant advantages of XRF technology for gold testing is its non – destructive nature. Traditional gold testing methods often involve cutting, melting, or using chemical reagents that can permanently damage the sample. For example, the fire assay method, which is a traditional and highly accurate method for determining gold purity, requires melting the gold sample at high temperatures, which is not suitable for samples that need to be preserved in their original form.
In contrast, XRF testing leaves the gold sample intact. This makes it an ideal choice for testing antique gold items, such as ancient gold coins or heirloom jewelry, where any damage would significantly reduce their historical or sentimental value. For instance, in a recent archaeological excavation in Egypt, XRF was used to analyze the gold artifacts without causing any harm, allowing historians to study both the composition of the gold and the craftsmanship of the ancient artisans. In the jewelry industry, high – end jewelry pieces with intricate designs and precious gemstones can be tested for gold purity using XRF without the risk of damaging the setting or the gemstones. This non – destructive feature also means that the same sample can be tested multiple times, either for verification purposes or to monitor changes in its composition over time.

High Precision and Accuracy

XRF technology offers high precision and accuracy in gold testing. Modern XRF instruments can achieve a detection accuracy of ±0.1% or even better in determining the gold content of a sample. This level of accuracy is crucial, especially in the financial and jewelry industries, where even a small difference in gold purity can have a significant impact on the value of the item.
For comparison, traditional acid – testing methods, which involve applying nitric acid to the gold sample and observing the reaction to estimate the gold content, are much less accurate. They can only provide a rough estimate of the gold purity, often with an error margin of several percentage points. In the gold trading market, where large – scale transactions of gold bars and coins take place, the high accuracy of XRF ensures that buyers and sellers can have confidence in the purity of the gold they are trading. For example, a gold bar with a declared purity of 99.99% can be accurately verified using XRF, protecting both the interests of the investor and the integrity of the market. In the jewelry manufacturing process, XRF allows jewelers to precisely control the gold content in their alloys, ensuring consistent quality and meeting the required standards.

Speed and Efficiency

XRF testing is remarkably fast. A typical XRF analysis of a gold sample can be completed in a matter of seconds to a few minutes, depending on the complexity of the sample and the desired level of precision. This speed is a vast improvement over traditional chemical – based gold testing methods, which can take hours or even days to complete.
For example, in a busy jewelry store, a salesperson can use a handheld XRF device to quickly test the gold purity of a customer – brought item in just a few seconds. This immediate result allows for on – the – spot decision – making, whether it’s for a purchase, a trade – in, or an appraisal. In a gold refinery, where large volumes of gold need to be processed and tested daily, the speed of XRF enables rapid quality control. Workers can analyze multiple samples in a short period, ensuring that the refining process is efficient and that the final product meets the required purity standards. The quick turnaround time of XRF also reduces the need for large – scale inventory storage while waiting for test results, saving both time and money for businesses involved in the gold supply chain.

Multi – element Analysis Capability

XRF has the unique ability to analyze multiple elements simultaneously in a gold sample. While determining the gold content is often the primary goal, the presence and concentration of other elements in the gold alloy can also provide valuable information.
Common alloying elements in gold include silver, copper, zinc, nickel, and palladium. Each of these elements can affect the properties of the gold alloy, such as its color, hardness, and durability. For example, copper is often added to gold to increase its strength and give it a reddish – tint, as seen in rose gold alloys. By using XRF, jewelers can accurately analyze the composition of their gold alloys, ensuring that they have the right balance of elements to achieve the desired properties. In addition, XRF can detect the presence of harmful or unwanted elements, such as lead or cadmium, which may be present as impurities in the gold. This is important for both product quality and consumer safety, especially in the case of gold jewelry that comes into direct contact with the skin. In the recycling of electronic waste, which may contain small amounts of gold, XRF can quickly identify and quantify the gold along with other valuable elements, helping recycling companies optimize their processes and maximize the recovery of precious metals.

Real – world Applications of XRF in Gold – related Industries

Jewelry Industry

  1. Purity Detection in Jewelry: In the jewelry industry, XRF technology is extensively used to determine the purity of gold jewelry. For example, a high – end jewelry brand might use XRF to verify that the gold in their newly designed necklaces is indeed 18K or 22K as claimed. By quickly and accurately measuring the gold content and the presence of alloying elements like silver, copper, or zinc, jewelers can ensure that their products meet the quality standards expected by consumers. This is especially important as consumers are becoming more discerning and demand accurate information about the materials used in the jewelry they purchase.
  2. Counterfeit Identification: XRF also plays a crucial role in identifying counterfeit gold jewelry. With the prevalence of fake gold items in the market, jewelers, and consumers need a reliable method to distinguish genuine gold from imitations. XRF can detect the presence of non – precious metals that are often used to create counterfeit gold. For instance, if a piece of jewelry is suspected to be gold – plated brass, XRF can quickly identify the high levels of copper (from brass) and the thin layer of gold, protecting both the reputation of the jewelry brand and the rights of the consumers.
  3. Quality Control in Production: During the production process of gold jewelry, XRF is used for quality control. When joining different parts of a jewelry piece using solder, XRF can analyze the composition of the solder to ensure that it has the appropriate gold content. This helps in maintaining the overall quality and value of the jewelry. For example, if the solder has a significantly lower gold content than the main body of the jewelry, it could lead to discoloration or weakness in the joint over time. By using XRF to monitor the production process, jewelers can avoid such issues and produce high – quality, consistent products.

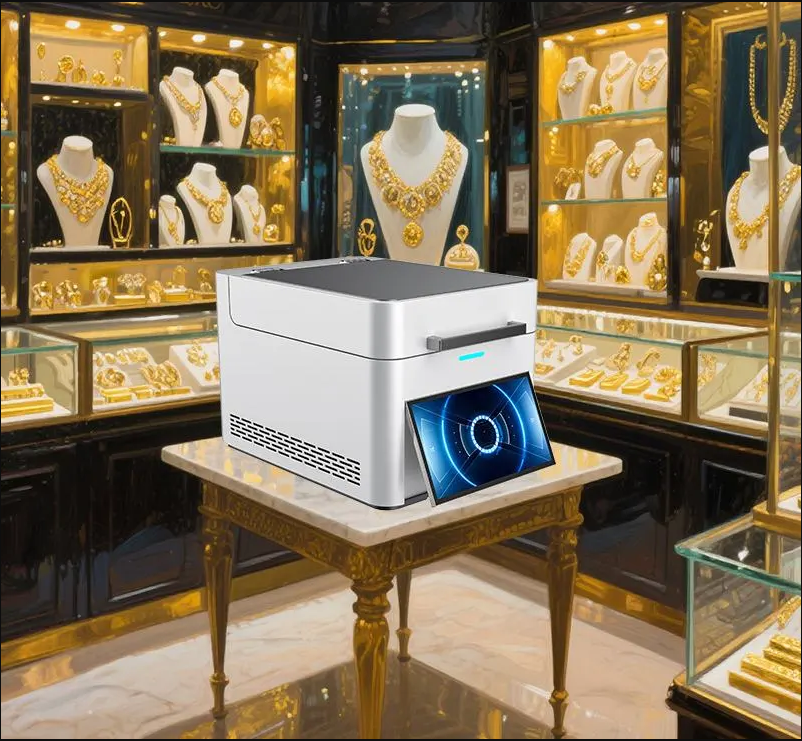

WM6000T

Gold Mining and Refining

  1. Ore Analysis in Gold Mining: In gold mining, XRF is an invaluable tool for analyzing the gold content in ores. Geologists can use handheld XRF analyzers in the field to quickly screen rock samples for the presence of gold and other associated elements. For example, in a new mining area, XRF can help in identifying areas with high – grade gold ores. By measuring the concentration of gold and other elements like arsenic, copper, and silver, which are often found in association with gold in ores, miners can make more informed decisions about which areas to focus their extraction efforts on. This not only improves the efficiency of the mining operation but also reduces costs by avoiding areas with low – grade ores.
  2. Refining Process Monitoring: During the gold refining process, XRF is used to monitor the purity of the gold at various stages. Refineries aim to produce gold of a specific purity, such as 99.9% or 99.99% pure gold. XRF allows refineries to continuously monitor the refining process and ensure that the impurities are being removed effectively. For instance, as the gold is being melted and refined, XRF can detect the presence of remaining impurities like lead, zinc, or iron. If the levels of these impurities are too high, the refining process can be adjusted to achieve the desired purity level. This ensures that the final product meets the strict quality standards required in the gold market, whether it is for investment – grade gold bars or high – purity gold for industrial applications.

Gold Trading and Investment

  1. Ensuring Quality in Gold Trading: In the gold trading market, XRF is essential for ensuring the quality and purity of the gold being traded. Whether it’s large – scale trading of gold bars between financial institutions or the purchase of gold coins by individual investors, the accuracy of the gold’s purity is crucial. XRF can verify that a gold bar labeled as 99.99% pure actually meets that standard. This builds trust in the market and protects the interests of both buyers and sellers. For example, in a multi – million – dollar gold bar transaction between two banks, XRF analysis provides an objective and reliable way to confirm the gold’s purity, reducing the risk of fraud and ensuring a smooth transaction.
  2. Investment – Grade Gold Verification: For gold investors, especially those dealing with investment – grade gold products like gold bars and coins, XRF offers a reliable means of verifying the quality of their investments. With the high value of gold, even a small difference in purity can translate to a significant difference in value. XRF can quickly and accurately measure the gold content, giving investors confidence in the authenticity and value of their gold investments. For instance, a collector of rare gold coins can use XRF to authenticate the coins and determine their true gold content, ensuring that they are getting a fair value for their purchase. This is particularly important in the secondary market for gold investments, where the authenticity and purity of the gold items need to be verified before a transaction takes place.

Limitations and Considerations of XRF in Gold Testing

Surface – only Detection

While XRF technology offers numerous advantages in gold testing, it also has some limitations. One of the significant limitations is its surface – only detection capability. XRF can typically only analyze the elemental composition of the sample’s surface layer. The depth of detection is usually limited to a few micrometers to a maximum of about 50 micrometers, depending on the density of the material and the energy of the X – rays used.
For example, in the case of a gold – plated item, XRF may only detect the gold in the thin surface layer and not the underlying base metal. If a brass item is thinly gold – plated, the XRF analysis may show a high gold content based on the surface detection, while the actual gold content of the entire item is much lower. This can lead to inaccurate results when trying to determine the overall gold purity of the object. In the jewelry industry, this could be a problem when assessing the value of a piece that appears to be solid gold but may actually be gold – plated. For high – value items, such as investment – grade gold bars, this surface – only detection is generally not a major issue as the bars are usually made of homogeneous materials. However, for more complex or potentially adulterated samples, this limitation needs to be considered.

Interference from Complex Alloys

Another challenge in using XRF for gold testing is the interference from complex alloy compositions. Gold alloys often contain multiple elements, and the presence of certain elements can interfere with the accurate detection of gold. When the X – rays interact with the sample, the fluorescent X – rays emitted by different elements can overlap or interfere with each other.
For instance, in a gold – copper – silver alloy, the fluorescent X – rays of copper and silver may have energy levels that are close to those of gold, especially in the low – energy range of the X – ray spectrum. This can make it difficult for the XRF instrument to accurately distinguish between the elements and precisely determine the gold content. The interference is more pronounced when the alloy contains elements with similar atomic numbers, as they tend to have similar X – ray emission characteristics.
To mitigate this issue, advanced XRF instruments often use sophisticated algorithms to de – convolute the overlapping signals. However, in some cases, it may be necessary to combine XRF with other techniques, such as inductively coupled plasma – mass spectrometry (ICP – MS) or optical emission spectroscopy (OES). These techniques can provide more in – depth analysis of the alloy composition, especially for samples with complex matrices. ICP – MS, for example, can achieve extremely low detection limits and provide highly accurate elemental analysis, which can complement the surface – based analysis of XRF.

Calibration and Standardization Requirements

Accurate XRF analysis in gold testing requires precise calibration and standardization. Calibration is the process of adjusting the XRF instrument to ensure that it provides accurate and reliable results. This involves using known standards with precisely determined elemental compositions.
The calibration process typically begins with the use of certified reference materials (CRMs) that have well – characterized gold and other elemental contents. These CRMs are analyzed using the XRF instrument, and the resulting data is used to create a calibration curve. The calibration curve relates the measured X – ray intensities to the known concentrations of the elements in the standards. During the analysis of unknown gold samples, the instrument refers to this calibration curve to calculate the elemental concentrations.
Standardization is also crucial. It ensures that the XRF instrument is operating within acceptable parameters over time. This includes regular checks of the X – ray source intensity, detector efficiency, and the stability of the spectrometer. If the X – ray source weakens over time, the intensity of the primary X – rays used to irradiate the sample will decrease, leading to lower – intensity fluorescent X – rays being detected. This can result in inaccurate measurements of the elemental concentrations. Similarly, if the detector’s sensitivity changes, it can also affect the accuracy of the analysis.
Without proper calibration and standardization, the results of XRF gold testing can be significantly off. For example, an uncalibrated XRF instrument may over – or under – estimate the gold content of a sample by several percentage points. In the gold trading and jewelry industries, such inaccuracies can lead to significant financial losses, as the value of gold is directly related to its purity. Therefore, regular calibration and standardization are essential to maintain the integrity and reliability of XRF – based gold testing.

Tips for Using XRF for Gold Testing

Sample Preparation

Proper sample preparation is crucial for accurate XRF gold testing. Here are some essential tips:
  • Clean the Surface: Before testing, the gold sample’s surface should be thoroughly cleaned. Any dirt, dust, oil, or other contaminants on the surface can interfere with the X – ray interaction and lead to inaccurate results. For example, a simple gold coin may have fingerprints or environmental dirt on it. You can use a soft, lint – free cloth and a mild cleaning solution suitable for gold, such as a specialized jewelry cleaner or a diluted solution of mild dish soap. Gently wipe the surface of the sample to remove all visible contaminants. Avoid using abrasive cleaners as they can scratch the surface of the gold, which may also affect the test results.
  • Avoid Surface Damage: During the cleaning process and handling of the sample, take great care to avoid any damage to the surface. Scratches or dents on the surface can change the way X – rays interact with the sample. If the sample is a delicate piece of jewelry with intricate designs, be especially cautious. Use appropriate tools like soft – tipped tweezers to handle the sample and place it in the XRF instrument’s sample holder. If the sample has a rough or uneven surface, it may be necessary to flatten a small area gently (if possible) to ensure consistent X – ray penetration and detection. However, this should be done with extreme care to avoid altering the sample’s composition.
  • Ensure Homogeneity: For accurate results, the sample should be as homogeneous as possible. If the gold sample is an alloy, and there are visible variations in color or texture, it may indicate inhomogeneity. In such cases, it may be necessary to take multiple measurements from different areas of the sample. For example, if a gold bar has some discoloration in certain spots, perform XRF analysis at those spots as well as at other representative areas. This can help to get a more accurate overall picture of the gold content and the distribution of alloying elements in the sample.

Instrument Calibration and Maintenance

Regular calibration and proper maintenance of the XRF instrument are essential for obtaining accurate and reliable gold test results.
  • Calibration Importance: Calibration ensures that the XRF instrument accurately measures the fluorescent X – rays and correctly identifies the elements and their concentrations in the gold sample. Without proper calibration, the instrument may give incorrect readings, leading to misinterpretation of the gold purity. For example, over time, the X – ray source may weaken, or the detector’s sensitivity may change. Calibration compensates for these changes. The calibration process typically involves using certified reference materials (CRMs) with known gold and other elemental compositions. These CRMs are analyzed by the XRF instrument, and the resulting data is used to create a calibration curve. This curve is then used to calculate the elemental concentrations in unknown samples.
  • Calibration Frequency: The frequency of calibration depends on several factors, such as the frequency of instrument use and the manufacturer’s recommendations. In general, for a high – volume gold testing laboratory where the XRF instrument is used daily, calibration should be performed at least once a week. However, if the instrument is used less frequently, monthly calibration may be sufficient. It is also advisable to perform calibration whenever there are any significant changes to the instrument, such as 更换 X – ray tubes, detectors, or major software updates.
  • Maintenance Tasks: Regular maintenance tasks include cleaning the instrument’s components. The X – ray source and detector should be kept clean to ensure optimal performance. Dust or debris on these components can reduce the intensity of the X – rays or interfere with the detection of fluorescent X – rays. Use compressed air or a specialized cleaning kit recommended by the manufacturer to clean these parts. Additionally, check the sample holder for any signs of wear or damage. A damaged sample holder may not hold the gold sample in the correct position, leading to inconsistent results. Periodically, the spectrometer should also be checked for its alignment and performance. This may involve running diagnostic tests provided by the instrument’s software to ensure that all components are working in harmony.

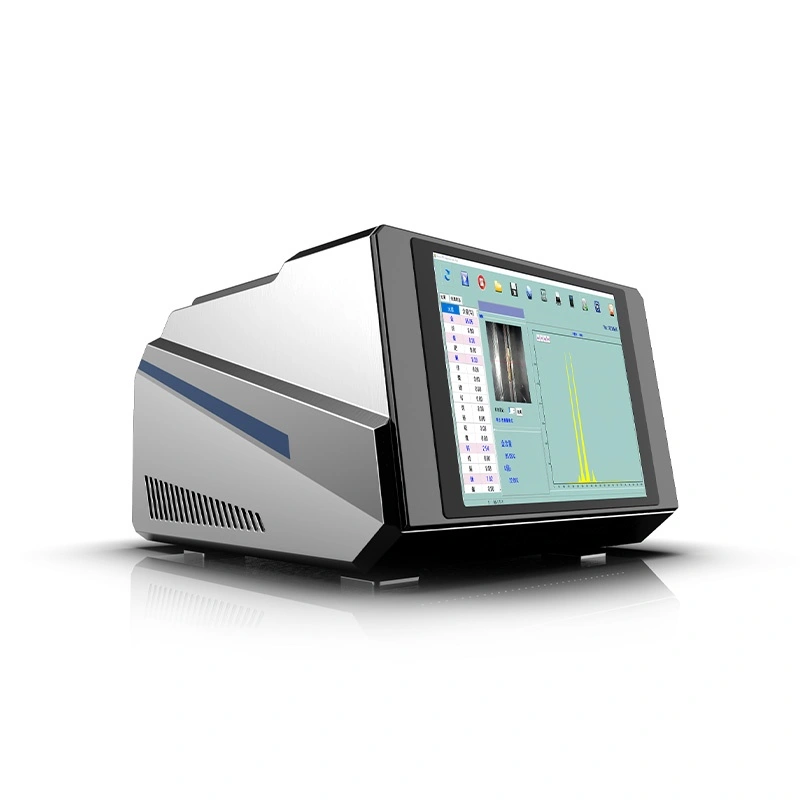

WM5800

Data Analysis and Interpretation

Accurate data analysis and interpretation are key to getting meaningful results from XRF gold testing.
  • Understand the Spectrum: When analyzing the XRF data, first, carefully examine the energy – dispersive spectrum (for EDXRF) or the wavelength – dispersive spectrum (for WDXRF). Each peak in the spectrum corresponds to a specific element. The height or intensity of the peak is related to the concentration of that element in the gold sample. For gold, there will be characteristic peaks at specific energy or wavelength values. Learn to recognize these peaks and distinguish them from the peaks of other elements. For example, in a gold – silver – copper alloy, the peaks of silver and copper may be close to those of gold, but with practice and the use of reference spectra, you can accurately identify each element.
  • Consider Matrix Effects: Matrix effects refer to the influence of the sample’s matrix (the other elements present in the gold sample) on the XRF analysis. The presence of certain elements can enhance or suppress the emission of fluorescent X – rays from gold. For instance, in a gold – nickel alloy, nickel may have a matrix effect on the gold signal. To account for matrix effects, modern XRF instruments use software algorithms that are designed to correct for these interactions. However, it is still important to be aware of potential matrix effects, especially when dealing with complex alloy compositions. In some cases, it may be necessary to perform additional tests or use reference materials with similar matrix compositions to improve the accuracy of the analysis.
  • Use Multiple Data Points: To increase the accuracy and reliability of the results, use multiple data points. Take several measurements from different areas of the gold sample, especially if there are concerns about sample homogeneity. Calculate the average value of the gold content and the standard deviation. A low standard deviation indicates a more consistent sample and more reliable results. For example, if you are testing a large gold bar, take measurements from the center, edges, and different sides of the bar. Combining these data points can give a more comprehensive and accurate picture of the gold purity and the distribution of alloying elements in the sample.
  • Cross – Reference with Other Information: Cross – reference the XRF results with other available information. If you are testing a piece of gold jewelry, consider its markings, such as “18K” or “750” which indicate the gold purity. While these markings are not always 100% accurate, they can provide a starting point for comparison. Also, if you have any prior knowledge about the source of the gold sample or the manufacturing process, use this information to validate the XRF results. For example, if the gold is from a known refinery with a reputation for high – quality products, the XRF results should be consistent with the expected purity standards.

Future Trends of XRF Technology in Gold Testing

Technological Innovations

  1. Advanced Detectors: In the future, we can expect the development of more advanced detectors for XRF technology in gold testing. Current semiconductor detectors, like silicon drift detectors (SDD), will likely see improvements in energy resolution. For example, new materials and manufacturing techniques may enable SDDs to achieve even higher energy resolution, perhaps reducing the energy resolution from the current level of around 125 – 150 eV to below 100 eV. This would allow for more precise identification of gold and other elements in a sample, especially when dealing with complex alloy compositions where the energy differences between the fluorescent X – rays of different elements are very small. Additionally, detectors with higher sensitivity and faster response times may be developed. These detectors would be able to capture more fluorescent X – rays in a shorter period, reducing the analysis time for gold samples. For instance, a new type of detector could potentially increase the detection efficiency by 50%, enabling a more rapid determination of gold purity.
  2. Optimized X – Ray Sources: X – ray sources in XRF instruments will also undergo significant advancements. High – power micro – focused X – ray tubes are likely to become more common. These tubes can produce a more intense and focused beam of X – rays, which will improve the excitation of the gold sample. For example, a micro – focused X – ray tube with a power of 5 – 10 kW could be developed, providing a much stronger primary X – ray beam. This would enhance the signal – to – noise ratio in the detected fluorescent X – rays, leading to more accurate and reliable results, especially for samples with low gold content or when detecting trace elements in gold alloys. Furthermore, the development of more stable and long – lasting X – ray sources will reduce the need for frequent replacements, lowering the maintenance costs associated with XRF instruments.
  3. Enhanced Data Processing Systems: The data processing capabilities of XRF instruments will see remarkable improvements. With the continuous development of computer technology, XRF data processing software will become more intelligent. It will be able to handle larger amounts of data in a shorter time and perform more complex analyses. For example, machine – learning algorithms will be more deeply integrated into the data processing system. These algorithms can be trained on a vast number of gold sample spectra to automatically identify and classify different types of gold alloys, detect potential impurities more accurately, and even predict the physical properties of the gold alloy based on its elemental composition. In addition, real – time data analysis will become more common, allowing for immediate feedback during the gold testing process. This will be particularly useful in industrial settings, such as gold refineries, where quick decisions need to be made based on the test results.

Integration with Other Technologies

  1. Artificial Intelligence (AI) and Machine Learning (ML): The integration of AI and ML with XRF technology holds great promise for gold testing. AI algorithms can analyze the XRF spectra in real – time, not only accurately determining the gold content and the presence of other elements but also providing insights into the origin and manufacturing process of the gold sample. For example, by analyzing the unique patterns in the XRF spectrum, AI can potentially identify the source of the gold ore, whether it is from a particular mine or region. ML algorithms can be trained on a large database of known gold samples to improve the accuracy of impurity detection. They can learn to recognize complex alloy signatures and distinguish between natural variations in gold samples and signs of adulteration. This integration will also enable predictive maintenance of XRF instruments. AI can monitor the performance of the instrument over time, detect early signs of component degradation, and predict when maintenance or calibration is required, ensuring the continuous reliability of the gold testing process.
  2. Big Data Analytics: XRF technology combined with big data analytics will open up new possibilities in gold testing. As more and more gold samples are analyzed using XRF, a vast amount of data is generated. Big data analytics can process this data to identify trends and correlations that were previously overlooked. For example, by analyzing data from different gold mines, refineries, and jewelry manufacturers, it may be possible to identify common alloying practices, quality control issues, or emerging trends in the gold industry. This information can be used to improve the standardization of gold testing procedures, enhance product quality, and even inform investment decisions in the gold market. Big data can also be used to create a global database of gold sample spectra, which can be accessed by XRF users worldwide for reference and comparison, further improving the accuracy and consistency of gold testing.
  3. Combination with Raman Spectroscopy: The combination of XRF with Raman spectroscopy can provide a more comprehensive analysis of gold samples. While XRF is excellent at determining the elemental composition of a sample, Raman spectroscopy can provide information about the chemical bonds and molecular structure of the materials present. In the context of gold testing, this combination can be used to identify the presence of organic compounds or specific chemical species in the gold alloy. For example, if a gold sample contains a small amount of a particular organic compound that may affect its properties or authenticity, Raman spectroscopy can detect it, while XRF can determine the elemental composition of the alloy. This combined approach can be particularly useful in the analysis of antique gold items, where the presence of certain organic materials may be related to the manufacturing process or the historical context of the item.

FAQ

  1. Q1: How accurate is XRF for gold testing? A: Modern XRF instruments can achieve a detection accuracy of ±0.1% or even better in determining the gold content of a sample. However, factors such as sample homogeneity, surface condition, and instrument calibration can affect the accuracy.
  2. Q2: Can XRF detect the difference between 18K and 24K gold? A: Yes, XRF can accurately detect the difference between 18K (75% gold) and 24K (99.9% or higher gold content) gold. By measuring the intensity of the gold – specific fluorescent X – rays and comparing it with known standards, XRF can clearly distinguish the two.
  3. Q3: Is XRF suitable for testing large – scale gold bullion? A: Yes, XRF is very suitable for testing large – scale gold bullion. Its non – destructive nature ensures that the bullion remains intact during testing, and its high – accuracy measurement can provide reliable information about the gold purity, which is crucial for bullion trading and investment.
  4. Q4: What are the common limitations of XRF in gold testing? A: The main limitations include surface – only detection, which may lead to inaccurate results for gold – plated items. Interference from complex alloys can also make it difficult to accurately determine the gold content. Additionally, accurate XRF analysis requires precise calibration and standardization, and without proper calibration, the results can be significantly off.
  5. Q5: How often should an XRF instrument be calibrated for gold testing? A: The frequency of calibration depends on factors such as the frequency of instrument use and the manufacturer’s recommendations. For high – volume gold testing laboratories where the XRF instrument is used daily, calibration should be performed at least once a week. For less frequently used instruments, monthly calibration may be sufficient.

FAQs

1. How accurate is XRF for testing gold purity?

XRF technology offers high accuracy in gold purity testing. Modern XRF instruments can typically achieve an accuracy of ±0.1% or even better in determining the gold content of a sample. This high level of accuracy is due to the precise measurement of the fluorescent X – rays emitted by the gold atoms in the sample. However, several factors can influence the accuracy. Sample homogeneity is crucial. If the gold sample has regions with different elemental compositions, such as in some complex alloys or samples with impurities unevenly distributed, the measured value may not accurately represent the overall gold content. The surface condition of the sample also matters. Contaminants, scratches, or oxidation on the surface can affect the interaction between the X – rays and the gold atoms, leading to inaccurate results. Additionally, the calibration of the XRF instrument is vital. An improperly calibrated instrument may misinterpret the energy and intensity of the fluorescent X – rays, resulting in incorrect gold purity calculations.

2. Can XRF detect the difference between real gold and fake gold?

Yes, XRF can effectively detect the difference between real gold and fake gold. When X – rays interact with a sample, each element emits characteristic fluorescent X – rays. Real gold will produce a distinct set of X – ray energies corresponding to gold atoms. In contrast, fake gold, which is often made of other metals like brass (a copper – zinc alloy) or tungsten, will have a completely different X – ray emission pattern. For example, brass will show strong peaks corresponding to copper and zinc, while tungsten will have its own unique set of fluorescent X – ray energies. By analyzing these emitted X – rays, the XRF instrument can accurately identify the elements present in the sample. If the sample contains elements other than gold and common alloying elements associated with real gold (such as silver, copper), and lacks the characteristic gold X – ray signals, it can be determined as fake gold. However, in some cases where the fake gold is a very sophisticated imitation with a thin layer of real gold plating on a base metal, the surface – only detection limitation of XRF may pose a challenge. In such situations, additional techniques like mechanical testing to scratch the surface and expose the underlying metal or more in – depth chemical analysis may be required to confirm its authenticity.

3. Is XRF suitable for testing small or intricate gold items?

XRF is generally suitable for testing small or intricate gold items. Its non – destructive nature is a significant advantage in this regard, as it allows for the analysis of these delicate items without causing any damage. For small gold items, the XRF instrument can be adjusted to focus on the tiny sample area. Many XRF instruments are equipped with small – spot X – ray sources or collimators that can direct the X – ray beam precisely onto the small sample. This ensures that the X – rays interact effectively with the gold in the small item, and the emitted fluorescent X – rays can be accurately detected. For intricate gold items, such as those with complex designs or multiple components, XRF can still provide valuable information. However, it may be necessary to take multiple measurements from different areas of the item to account for any variations in composition. For example, in a piece of gold jewelry with a complex setting and small decorative elements, measurements from different parts of the jewelry can help determine if the gold purity is consistent throughout. Special sample holders may also be required to ensure that the intricate item is properly positioned and stable during the XRF analysis. Overall, while there may be some challenges in handling small or intricate gold items, XRF can still be a reliable tool for their gold purity testing.

4. How often does an XRF instrument need to be calibrated for gold testing?

The calibration frequency of an XRF instrument for gold testing depends on several factors. If the instrument is used frequently, such as in a high – volume gold trading center or a busy jewelry manufacturing factory where it is in operation daily, it should be calibrated at least once a week. Regular use can cause the X – ray source to gradually lose intensity, and the detector’s sensitivity may also change over time. Weekly calibration helps to compensate for these changes and ensures accurate results. In laboratories or facilities where the XRF instrument is used less often, perhaps a few times a month, monthly calibration may be sufficient. However, it’s important to note that whenever there are significant changes to the instrument, such as replacing the X – ray tube, detector, or major software updates, calibration should be performed immediately. These changes can alter the instrument’s performance characteristics, and calibration is necessary to re – establish its accuracy. Additionally, if there are any doubts about the reliability of the test results or if the instrument has been moved to a new location, it is advisable to perform a calibration to ensure that the instrument is operating correctly for gold testing.

5. What are the costs associated with using XRF for gold testing?

The costs associated with using XRF for gold testing can be divided into several components. The initial cost of purchasing an XRF instrument can be significant. Portable XRF devices, which are convenient for on – site testing in places like jewelry stores or gold trading floors, typically range from a few thousand to tens of thousands of dollars, depending on their features and capabilities. Laboratory – grade XRF instruments, which offer higher precision and more advanced functions, can cost upwards of tens of thousands to hundreds of thousands of dollars. Maintenance costs are also a factor. Regular maintenance tasks, such as cleaning the X – ray source and detector, checking the sample holder for wear, and performing diagnostic tests on the spectrometer, require time and resources. Replacement parts, such as X – ray tubes or detectors, which may need to be replaced periodically depending on their lifespan and usage, can also add to the maintenance costs. For example, an X – ray tube may need to be replaced every few years, and the cost can range from a few hundred to several thousand dollars. The cost of calibration is another aspect. Certified reference materials used for calibration can be expensive, especially if high – accuracy standards are required. Each calibration session may require the use of multiple reference materials, and these materials need to be purchased regularly. Additionally, if the calibration is performed by an external service provider, there will be a service fee involved. Operational costs include the cost of electricity to power the XRF instrument and any associated equipment, as well as the cost of trained personnel to operate and maintain the instrument. Training employees to use the XRF instrument correctly and interpret the results accurately may also incur costs, either through in – house training programs or by sending employees to external training courses.
