XRF Detector Window Replacement: When to Replace and What to Check

Why the detector window is the heart of your XRF

The detector window is a thin, specialized film (typically Prolen or Mylar) that protects the sensitive SDD detector while allowing X-rays to pass through with minimal attenuation. Over time, this window can become contaminated with dust, oil from jewelry, or small metal shavings. If the window is punctured or heavily soiled, the accuracy of your readings will drop, and you risk permanent damage to the expensive detector crystal underneath.

Monitoring the window’s condition should be a weekly task. A slightly dirty window might cause a 0.5% drift in gold readings, while a puncture can lead to catastrophic detector failure if moisture enters the vacuum chamber. For more on maintenance schedules, refer to the WMK600 user manual or our pricing guide for spare parts.

When to replace the window

Knowing when to replace the window is just as important as knowing how. Look for these three primary indicators of a failing window.

Step-by-step replacement guide

Replacing the window is a simple 5-minute process that does not require a technician, but it does require a clean environment and steady hands.

1. Power Down: Ensure the unit is completely powered off and unplugged.
2. Remove the Retainer: Carefully unscrew the protective cap or retaining ring surrounding the detector.

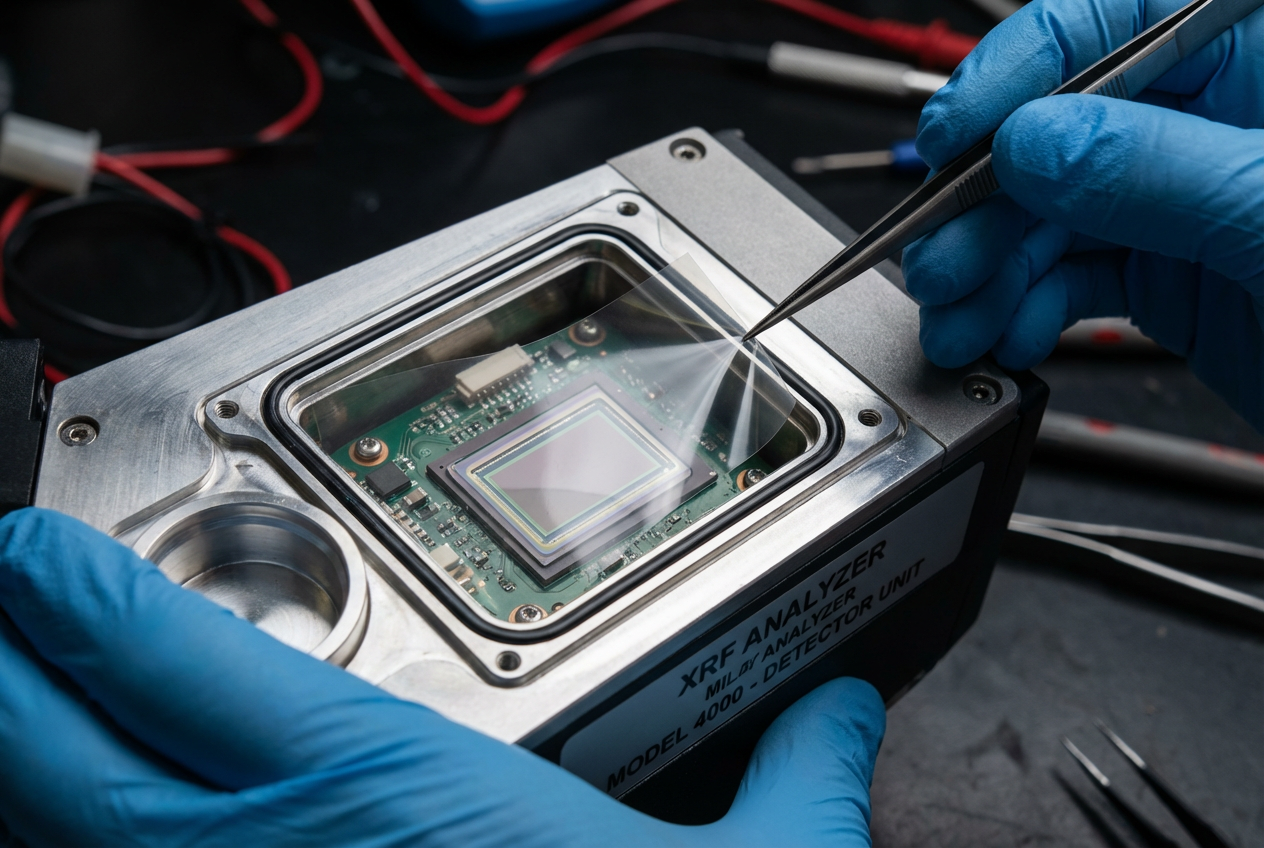

3. Clean the Area: Use compressed air to blow away any debris from the sensor area *before* removing the old film.
4. Apply New Film: Place a fresh, pre-cut window film over the aperture. Ensure there are no wrinkles or fingerprints.
5. Secure and Calibrate: Replace the retainer and run a full “Energy Calibration” to account for the new film’s density.

By maintaining a clean and intact detector window, you ensure the longevity of your investment and the accuracy of every gold transaction. A $5 window film protects a $5,000 detector. For more maintenance tips, visit our product support page.
